| MOQ: | 1 |
| Price: | $2000-3000 |
| Payment Terms: | L/C,D/A,Western Union,T/T,D/P |

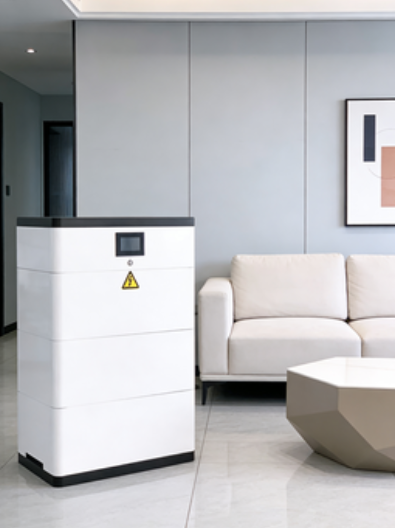

This advanced energy storage system features a stacked design for flexible expansion and elegant aesthetics. The system offers one-button startup with side-hidden wiring for convenient customer operation. The display interface supports direct selection of mainstream inverter protocols for seamless communication.
Comprehensive multi-level battery protection strategies and fault isolation measures ensure safe system operation, making it ideal for small commercial and residential energy storage applications.
| Model | CH—GLV1-P10 |
| Battery Module Model | LFP48V/100Ah |
| Battery Module Nominal Energy(kWh) | 4.8 |
| Rated Voltage(V) | 48 |
| Number of Cell Modules in Single Cluster | 2 |
| Single Cluster Battery Energy (kWh) | 9.6 |
| Maximum number of Clusters in Parallel | 8 |
| Operating Voltage Range(V) | 42~54.75 |
| Recommended Charging Voltage(V) | 51.75 |
| Recommended Discharge Cut-off Voltage(V) | 45 |
| Maximum Charge/Discharge Current (A) | 0.5C |
| Unit Cluster Size (D*W*H)mm | 425*700*672 |
| Unit Cluster Weight(kg) | 145 |
| Communication Mode | CNA/485/Bluetooh |
| Proper Temperature(℃) | -30~60(Recommended 10~35) |
| Storage Temperature(℃) | -20~65(Recommended 10~35) |
| Humidity(%RH) | <85 |
| Protection Level | IP20 |
| Cooling Method | Natural Air Cooling |
| Number of Cycle | ≥5000 |
| Standard of Security | CE, UN38.3,MSDS |
