| MOQ: | 1 |
| Price: | $1400-1600 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

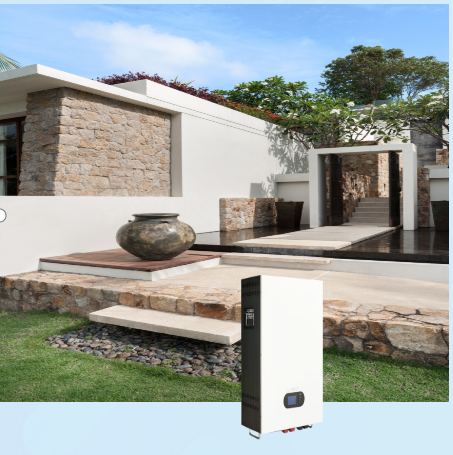

10.24kWh Home Energy Storage Solutions 200Ah Household Energy Storage Battery
Product introduction
The product adopts modular design, higher integration,saves installation space; adopts high-perfomance lithiumiron phosphate positive electrode material, the battery cell has good consistency, and the designed service life is more than 10 years; one-key switch machine, front operation, front wiring, easy installation, convenient maintenance and operation; various functions, over-temperature alarm protection, over-charge and over-discharge protection.short-circuit protection; strong compatiblity, seamless connection with UPS, photovoltaic power generation and other main equipment various forms of communication interfaces. CAN/RS485, etc. can be customized according to customer needs, which is convenient for remote monitoring and flexible use of the system High-energy, low-power lithium-ion battery equipment achieves higher energy supply, lower energy consumption and reduces environmental pollution; all-round, multi-level battery protection strategies and fault isolation measures are adopted to ensure the safe operation of the system.
Product Highlights
1.Wall-hanging installation, save space.
2.Multiple in parallel, easy for expand,Automatic addressing, no need to dial a code.
3.Standard configuration with LCD display, real time knowing battery status,Screen direct selection of invertercommunication.
4.Environmentally friendly non-polluting materials, free of heavy metals, green and environmentally friendly.
5.Standard cycle life is more than 5000 times.
| Model | CH—GBP51.2-200W |
| Nominal Voltage (V) | 51.2 |
| Cell Specification | 100 |
| Nominal Capacity(Ah) | 200 |
| Nominal Energy (kWh) | 10.24 |
| Operating Voltage Range(V) | 44.8~58.4 |
| Recommended Charging Voltage(V) | 55.2 |
| Recommended Discharge Cut-off Voltage(V) | 48 |
| Standard Charge/Discharge Current (A) | 0.5C |
| Maximun Continuous Charge/Discharge Current(A) | 1C(Customizable) |
| Operating Temperature(°C) | -30~60(Recommended 10~35 ) |
| Allowable Humidity Range(%RH) | <85 |
| Storage Temperature(°C) | -20~65(Recommended 10~35) |
| Charging Temperature(°C) | 0~55 |
| Discharging Temperature(°C) | -10~55 |
| Protection Level | IP20 |
| Cooling Method | Natural Air Cooling/Intelligent Fan |
| Cycle Life | 5000+ Times at 80% DOD |
| Maximum Dimension(D*W*H)mm | 682*465*276 |
| Weight(kg) | 96 |
