51.2V 628Ah Residential LiFePO4 Battery 32.15kWh Home Solar Energy Storage
Basic Properties
Place of Origin:CHINA
Certification:CE
Trading Properties
Minimum Order Quantity:1
Price:$3500-3700
Payment Terms:L/C,D/A,D/P,T/T,Western Union
Specifications
| Nominal Voltage (V): | 51.2V | Color: | White |
|---|---|---|---|
| Highlight | 51.2v residential lifepo4 battery,residential lifepo4 battery 32.15kwh,32.15kwh home solar energy storage |
||
Product Description

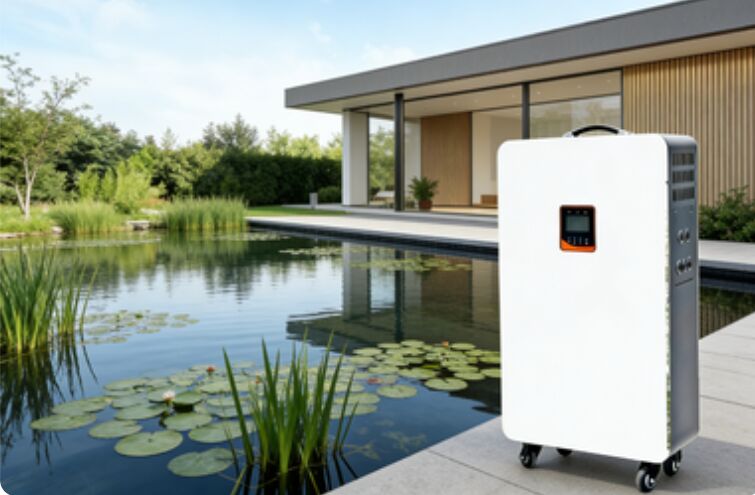

Portable Wheel-Type 51.2V LiFePO4 Battery for Residential Energy Storage
Key Specifications: 32.15kWh capacity with over 5000 cycle life
Product Overview
This portable wheel-type energy storage solution features an innovative design for easy mobility and reliable residential power storage. The system incorporates comprehensive multi-level battery protection strategies and fault isolation measures to ensure safe operation.
Primary Applications
Ideal for small commercial operations and family energy storage requirements.
Key Features
• Wheeled design for easy transportation and positioning
• Embedded wiring system ensuring safe and reliable connections
• Standard LCD display for real-time battery status monitoring
• Direct inverter communication protocol selection via display interface
• Environmentally friendly materials without heavy metals
• Extended cycle life exceeding 5,000 cycles
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CH--GBP51.2-628L |
| Nominal Voltage (V) | 51.2 |
| Cell Specification | 314 |
| Nominal Capacity (Ah) | 628 |
| Operating Voltage Range (V) | 44.8~58.4 |
| Recommended Charging Voltage (V) | 55.2 |
| Recommended Discharge Cut-off Voltage (V) | 48 |
| Standard Charge/Discharge Current (A) | 100 |
| Maximum Continuous Charge/Discharge Current (A) | 200 |
| Operating Temperature (°C) | -30~60 (Recommended 10~35) |
| Allowable Humidity Range (%RH) | <85 |
| Storage Temperature (°C) | -20~65 (Recommended 10~35) |
| Charging Temperature (°C) | 0~55 |
| Discharging Temperature (°C) | -10~55 |
| Protection Level | IP20 |
| Cooling Method | Natural Air Cooling |
| Cycle Life | 5000+ Times at 80% DOD |
| Maximum Dimension (D*W*H) mm | 890*350*1060 |
| Weight (kg) | 284/293 |
Manufacturing & Customization
• Factory direct supply with proprietary production base
• Flexible production capacity supporting small batch orders (MOQ 1 unit)
• Customization services available for voltage, interface, and other parameters
Contact Details
Sichuan Changhong Clean Energy Co., Ltd.
Contact Person: Miss. Betty
Tel: 86--15198131451
