| MOQ: | 1 |
| Price: | $3500-3700 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

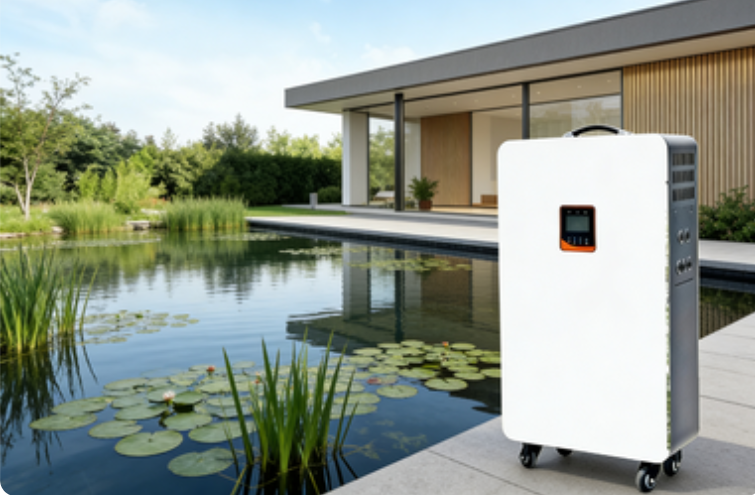

This portable wheel-type energy storage solution features an innovative design for easy mobility and reliable residential power storage. The system incorporates comprehensive multi-level battery protection strategies and fault isolation measures to ensure safe operation.
Ideal for small commercial operations and family energy storage requirements.
| Parameter | Specification |
|---|---|
| Model | CH--GBP51.2-628L |
| Nominal Voltage (V) | 51.2 |
| Cell Specification | 314 |
| Nominal Capacity (Ah) | 628 |
| Operating Voltage Range (V) | 44.8~58.4 |
| Recommended Charging Voltage (V) | 55.2 |
| Recommended Discharge Cut-off Voltage (V) | 48 |
| Standard Charge/Discharge Current (A) | 100 |
| Maximum Continuous Charge/Discharge Current (A) | 200 |
| Operating Temperature (°C) | -30~60 (Recommended 10~35) |
| Allowable Humidity Range (%RH) | <85 |
| Storage Temperature (°C) | -20~65 (Recommended 10~35) |
| Charging Temperature (°C) | 0~55 |
| Discharging Temperature (°C) | -10~55 |
| Protection Level | IP20 |
| Cooling Method | Natural Air Cooling |
| Cycle Life | 5000+ Times at 80% DOD |
| Maximum Dimension (D*W*H) mm | 890*350*1060 |
| Weight (kg) | 284/293 |
