| MOQ: | 1 |
| Price: | $1800-2000 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

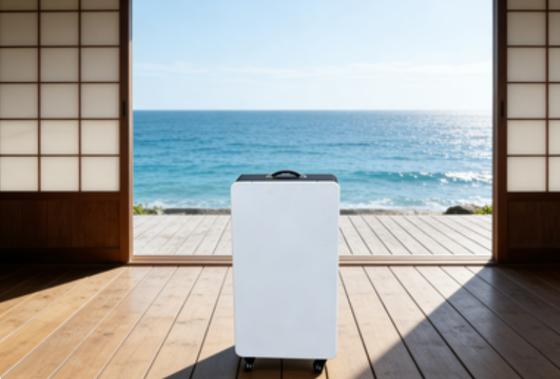

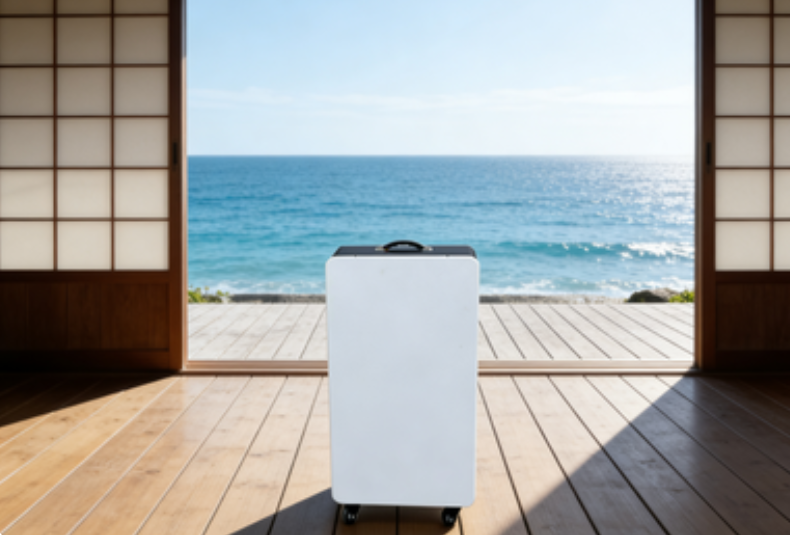

51.2V 16.07kWh Wheeled LiFePO4 Battery, 5000+ Cycles for Residential Energy Storage
Product introduction
The product adopts wheel design, beautiful shape, and convenient movement; including the mainstream market inverter protocol, directly communicates ;adopts a comprehensive and multi-level battery protection strategy and faultisolation measures to ensure the safe operation of the system.Widely used in small commercial and family energystorage.
Product Highlights
1.Wheeled design,easy to move.
2.Embedded wiring, safe and reliable.
3.Standard configuration with LCD display screen ,to understand battery status in real time,and directly select the inverter communication protocol on the screen.
4.Environmentally friendly and pollution-free materials, no heavy metals, green and environmentally friendly.
5.Standard cycle life over 5,000 times.
Other
Factory Direct Supply: Own production base ensures efficient order processing.
Flexible Production Capacity: Supports small batch trial orders (MOQ 1 unit).
Customization Service: Product parameters (e.g., voltage, interface) can be customized per customer requirements.
| Model | CH—GBP51.2-314L |
| Nominal Voltage (V) | 51.2 |
| Cell Specification | 314 |
| Nominal Capacity(Ah) | 314 |
| Operating Voltage Range(V) | 44.8~58.4 |
| Recommended Charging Voltage(V) | 55.2 |
| Recommended Discharge Cut-off Voltage(V) | 48 |
| Standard Charge/Discharge Current (A) | 100 |
| Maximun Continuous Charge/Discharge Current(A) | 150 |
| Operating Temperature(°C) | -30~60(Recommended 10~35 ) |
| Allowable Humidity Range(%RH) | <85 |
| Storage Temperature(°C) | -20~65(Recommended 10~35) |
| Charging Temperature(°C) | 0~55 |
| Discharging Temperature(°C) | -10~55 |
| Protection Level | IP20 |
| Cooling Method | Natural Air Cooling |
| Cycle Life | 5000+ Times at 80% DOD |
| Maximum Dimension(D*W*H)mm | 248*680*880 |
| Weight(kg) | 144 |
