Energy Storage Residential 48V 280Ah 13.44kWh Battery Storage System For Home
Basic Properties
Place of Origin:China
Certification:CE
Trading Properties
Minimum Order Quantity:1
Price:$1400-1600
Payment Terms:L/C,D/A,D/P,T/T,Western Union
Specifications
| Weight(kg): | 139 | Maximum Dimension(D*W*H)mm: | 480*246*990 |
|---|---|---|---|
| Cycle Life: | 5000+ Times At 80% DOD | Cooling Method: | Natural Air Cooling |
| Protection Level: | IP20 | Discharging Temperature(℃): | -10~55 |
| Highlight | Energy Storage Residential 48V 13kWh,13kWh Battery Storage System For Home,48V Battery Storage System For Home |
||
Product Description

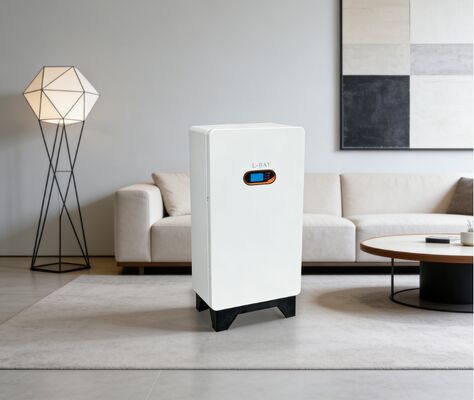

Residential Storage Vertical LiFePO4 Battery 13 kWh 48V 5000+ Cycle Life
This 13kWh vertical-type LiFePO4 battery combines elegant design with convenient mobility. Engineered for residential and small commercial energy storage applications, it features mainstream inverter protocols for direct communication and comprehensive multi-level protection systems with fault isolation to ensure safe operation.
Product Highlights
- Vertical design for safe and stable operation
- Hidden wiring with aesthetically pleasing appearance
- Standard LCD display for real-time battery status monitoring
- Direct inverter protocol selection capability
- Environmentally friendly materials free from heavy metals and pollutants
- Standard cycle life exceeding 5,000 cycles
Technical Specifications
| Model | CH --GBP48-280HL |
|---|---|
| Nominal Voltage (V) | 48 |
| Cell Specification | 280 |
| Nominal Capacity (Ah) | 280 |
| Operating Voltage Range (V) | 42~54.75 |
| Recommended Charging Voltage (V) | 51.75 |
| Recommended Discharge Cut-off Voltage (V) | 45 |
| Standard Charge/Discharge Current (A) | 100 |
| Maximum Continuous Charge/Discharge Current (A) | 150 |
| Operating Temperature (°C) | -30~60 (Recommended 10~35) |
| Allowable Humidity Range (%RH) | <85 |
| Storage Temperature (°C) | -20~65 (Recommended 10~35) |
| Charging Temperature (°C) | 0~55 |
| Discharging Temperature (°C) | -10~55 |
| Protection Level | IP20 |
| Cooling Method | Natural Air Cooling |
| Cycle Life | 5000+ Times at 80% DOD |
| Maximum Dimension (D*W*H) mm | 480*246*990 |
| Weight (kg) | 139 |
Manufacturing & Customization
Factory direct supply from our own production base ensures maximum efficiency and quality control. We support flexible production capacity with minimum order quantity of just 1 unit for trial orders. Customization services available for product parameters including voltage and interface configurations to meet specific customer requirements.
