| MOQ: | 1 |
| Price: | $1100-1300 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

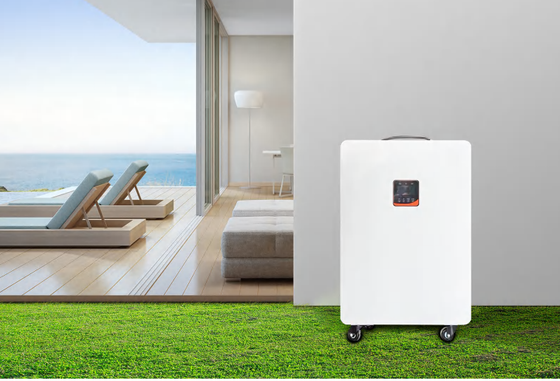

| Model: CH--GSL48-3.5K-5kWh | |
| Inverter Output | |
| Rated Output Power (W) | 3500 |
| Rated Output Power (VA) | 3500 |
| Max Peak Power (W) | 6000 |
| Rated AC Output | 230VAC(200/208/220/230/240VAC can be set),50/60Hz |
| Output Voltage Waveform | Pure Sine Wave |
| Inverter to Bypass Transfer Time (ms) | 10 (Typical) |
| Max Battery Mode Efficiency | 93% |
| Overload Protection | 102%~110%, 5min; 110%~125%, 10s; >125%, 2s |
| Battery | |
| Nominal Capacity (Ah) | 100 |
| Rated Battery Voltage (VDC) | 48/51.2 |
| Battery Voltage Range (V) | 42~54.75/44.8~58.4 |
| Max MPPT Charging Current (A) | 50 |
| Max AC Charging Current (A) | 50 |
| Max Hybrid Charging Current (A) | 50 |
| PV Charging | |
| Number of MPPT Trackers | 1 |
| Max PV Array Power (W) | 5500 |
| Max PV Input Current (A) | 22 |
| Max Open Circuit Voltage (VDC) | 500 |
| MPPT Operating Range (V) | 70~450 |
| MPPT Tracking Efficiency | 99.90% |
| AC Input | |
| Input Voltage Range (VAC) | 90~280/170~280 |
| Frequency Range (Hz) | 50/60±0.3 |
| Physical Specifications | |
| Dimensions (D*W*H) mm | 210*500*805 |
| Weight (kg) | 70 |
| Waterproof Rating | IP20 |
| Operating Temperature Range (°C) | -10~55 |
| Storage Temperature Range (°C) | -10~55 |
| Noise (dB) | <60 |
| Cooling Method | Forced Air Cooling |
