5.5kW 48V 20kWh Home LiFePO4 Battery Stackable Home Solar Battery Storage

Quality 5.5kW 48V 20kWh Home LiFePO4 Battery Stackable Home Solar Battery Storage factory
Quality 5.5kW 48V 20kWh Home LiFePO4 Battery Stackable Home Solar Battery Storage factory

Basic Properties

Place of Origin:CHINA
Certification:CE

Trading Properties

Minimum Order Quantity:1
Price:$3200-3400
Payment Terms:L/C,D/A,D/P,T/T,Western Union
Specifications
Battery Voltage Range (V): 42~54.75/44.8~58.4 Inverter To Bypass Transfer Time (ms) : 10(Typical)
Energy (kWh): 20kwh Output Voltage Waveform: Pure Sine Wave
Highlight

20kwh home lifepo4 battery

,

home lifepo4 battery stackable

,

stackable home solar battery storage
Product Description

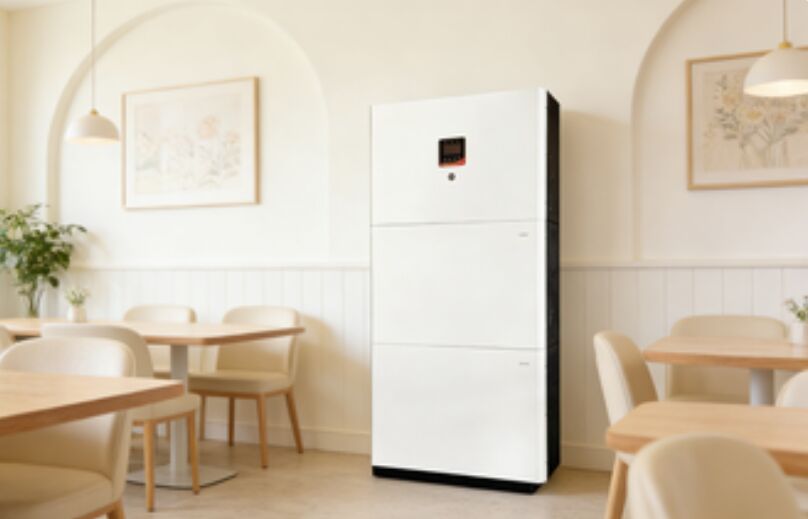

5kW 48V 20kWh All-in-One Home Solar Energy Storage System
Plug & Play Hybrid Inverter with Battery
This stackable all-in-one unit integrates hybrid inverters and energy storage batteries into a single, compact system. Featuring multiple application modes, high power density, plug-and-play functionality, and concealed wiring design, it is ideal for small commercial and residential energy storage applications.
Key Features
  • Multiple Application Modes: 3 output modes and 4 charging modes to accommodate diverse energy scenarios
  • Flexible Combination: Stackable design enables scalable battery capacity expansion
  • High Safety Standards: DSP control with advanced algorithms, multiple safety alarms and protection systems
  • Smart & User-Friendly: Intelligent BMS with real-time cloud monitoring via mobile application
5kW 48V 20kWh All-in-One Home Solar Energy Storage System - Plug & Play Hybrid Inverter with Battery
Technical Specifications
Model: CH--GSL48-5.5K-20kWh
Inverter Output
Rated Output Power (W) 5500
Rated Output Power (VA) 5500
Max Peak Power (W) 10000
Rated AC Output 230VAC (200/208/220/240VAC can be set) 50/60Hz
Output Voltage Waveform Pure Sine Wave
Inverter to Bypass Transfer Time (ms) 10 (Typical)
Max Battery Mode Efficiency 93%
Overload Protection 102%~110%, 5min; 110%~125%, 10s; >125%, 5s
Battery
Energy (kWh) 20
Number of Battery Modules 2
Rated Battery Voltage (VDC) 48
Battery Voltage Range (V) 42~54.75/44.8~58.4
Rated Charge/Discharge Rate 0.5C
Max MPPT Charging Current (A) 100
Max AC Charging Current (A) 60
Max Hybrid Charging Current (A) 100
PV Charging
Number of MPPT Trackers 1
Max PV Array Power (W) 5500
Max PV Input Current (A) 22
Max Open Circuit Voltage (VDC) 500
MPPT Operating Range (V) 120~450
MPPT Tracking Efficiency 99.9%
AC Input
Input Voltage Range (VAC) 90~280/170~280
Frequency Range (Hz) 50/60±0.3
Physical Specifications
Dimensions (D*W*H) mm 250*690*1310
Weight (kg) 225
IP Rating IP20
Operating Temperature Range (°C) -10~55
Storage Temperature Range (°C) -25~60
Noise (dB) <60
Cooling Method Forced Air Cooling (Adjustable Fan Speed) for Inverter / Natural Cooling for Battery
Manufacturing & Customization
  • Factory Direct Supply: Own production base with direct order processing for maximum efficiency
  • Flexible Production Capacity: Support for small batch trial orders (MOQ 1 unit)
  • Customization Service: Product parameters (voltage, interface) can be tailored to customer requirements
Note: The above data is for reference only and is subject to change without prior notice. Special voltages can be customized.
