230VAC Home LiFePO4 Battery 5.5kW 48V 30kWh Home ESS With Hybrid Inverter
Basic Properties
Place of Origin:CHINA
Certification:CE
Trading Properties
Minimum Order Quantity:1
Price:$4500-4700
Payment Terms:Western Union,T/T,D/P,D/A,L/C
Specifications
| Noise (dB): | <60 | Rated Battery Voltage (VDC): | 48 |
|---|---|---|---|
| Overload Protection: | 102%~110%, 5min; 110%~125%, 10s; >125%, 5s | Rated AC Outpu: | 230VAC(200/208/220/240VAC Can Be Set)50/60Hz |
| Highlight | 230vac home lifepo4 battery,home lifepo4 battery 5kw,30kwh home ess |
||
Product Description

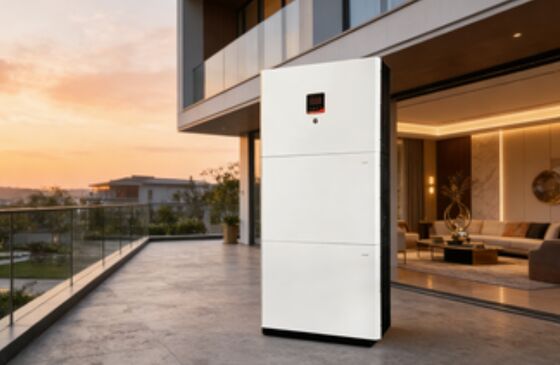

5kW 30kWh 48V All-in-One Home ESS with Hybrid Inverter
This stackable all-in-one unit integrates hybrid inverters and energy storage batteries into a single, compact solution. Featuring multiple application modes, high power density, plug-and-play functionality, and concealed wiring design, it is ideal for small commercial and residential energy storage applications.
Key Features
- Multiple Application Modes: 3 output modes and 4 charging modes to accommodate diverse energy scenarios
- Flexible Combination: Stackable design enables scalable battery capacity expansion as needed
- High Safety Standards: DSP control with advanced algorithms, multiple safety alarms, and comprehensive protection systems
- Smart & User-Friendly: Intelligent BMS with real-time cloud monitoring via mobile app
Technical Specifications
Inverter Output
| Rated Output Power (W) | 5500 |
| Rated Output Power (VA) | 5500 |
| Max Peak Power (W) | 10000 |
| Rated AC Output | 230VAC (200/208/220/240VAC can be set) 50/60Hz |
| Output Voltage Waveform | Pure Sine Wave |
| Inverter to Bypass Transfer Time (ms) | 10 (Typical) |
| Max Battery Mode Efficiency | 93% |
| Overload Protection | 102%~110%, 5min; 110%~125%, 10s; >125%, 5s |
Battery
| Energy (kWh) | 30 |
| Number of Battery Modules | 3 |
| Rated Battery Voltage (VDC) | 48 |
| Battery Voltage Range (V) | 42~54.75/44.8~58.4 |
| Rated Charge/Discharge Rate | 0.5C |
| Max MPPT Charging Current (A) | 100 |
| Max AC Charging Current (A) | 60 |
| Max Hybrid Charging Current (A) | 100 |
PV Charging
| Number of MPPT Trackers | 1 |
| Max PV Array Power (W) | 5500 |
| Max PV Input Current (A) | 22 |
| Max Open Circuit Voltage (VDC) | 500 |
| MPPT Operating Range (V) | 120~450 |
| MPPT Tracking Efficiency | 99.9% |
AC Input
| Input Voltage Range (VAC) | 90~280/170~280 |
| Frequency Range (Hz) | 50/60±0.3 |
Physical Specifications
| Dimensions (D*W*H) mm | 250*690*1170 |
| Weight (kg) | 325 |
| IP Rating | IP20 |
| Operating Temperature Range (°C) | -10~55 |
| Storage Temperature Range (°C) | -25~60 |
| Noise (dB) | <60 |
| Cooling Method | Forced Air Cooling (Adjustable Fan Speed) for Inverter / Natural Cooling for Battery |
Manufacturing & Customization
- Factory Direct Supply: Own production base with direct order processing for maximum efficiency
- Flexible Production Capacity: Support for small batch trial orders (MOQ 1 unit)
- Customization Service: Product parameters including voltage and interface can be tailored to customer requirements
Note: The above data is for reference only and is subject to change without prior notice. Special voltages can be customized.
