48V 10kW 10kWh Home Solar Energy Storage Home Solar Power Storage
Basic Properties
Place of Origin:CHINA
Certification:CE
Trading Properties
Minimum Order Quantity:1
Price:$2400-2600
Payment Terms:L/C,D/A,D/P,T/T,Western Union
Specifications
| Rated Charge/Discharge Rate: | 1C | Rated AC Outpu: | 230VAC(200/208/220/240VAC Can Be Set)50/60Hz |
|---|---|---|---|
| Inverter To Bypass Transfer Time (ms) : | 10(Typical) | Max Peak Power (W): | 15000 |
| Highlight | 10kwh home solar energy storage,10kw home solar power storage,10kw home solar energy storage |
||
Product Description

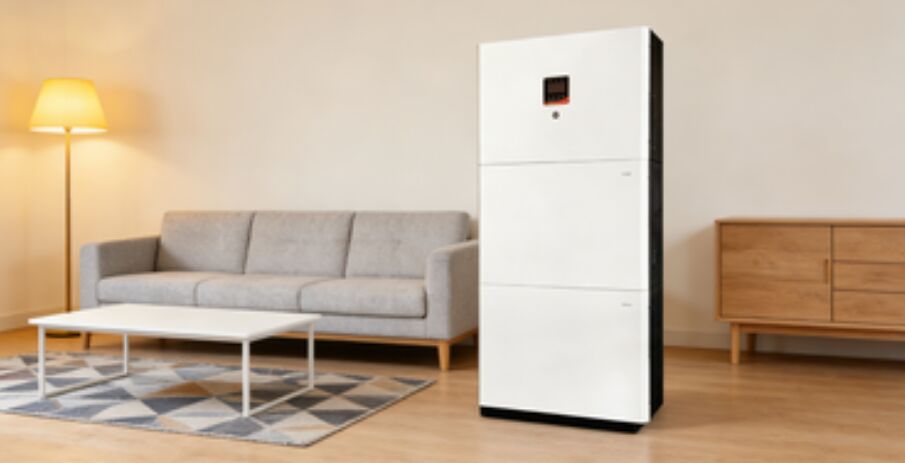

10kW 48V 10kWh Home Solar Energy Storage System
Stackable all-in-one unit integrating hybrid inverters and energy storage batteries with plug-and-play functionality and concealed wiring design. Ideal for small commercial and residential energy storage applications.
Key Features
- Multiple Application Modes: 3 output modes and 4 charging modes for diverse scenarios
- Flexible Combination: Stackable design allows for scalable battery capacity
- High Safety: DSP control with advanced algorithms and multiple safety protections
- Smart & User-Friendly: Intelligent BMS with real-time cloud monitoring via mobile APP
Manufacturing & Customization
Factory direct supply with flexible production capacity. Support for small batch trial orders (MOQ 1 unit) and customization of product parameters including voltage and interface specifications.
Technical Specifications
| Model: CH--GSL48-10K-10kWh | |
| Inverter Output | |
|---|---|
| Rated Output Power (W) | 10000 |
| Rated Output Power (VA) | 10000 |
| Max Peak Power (W) | 15000 |
| Rated AC Output | 230VAC (200/208/220/240VAC can be set) 50/60Hz |
| Output Voltage Waveform | Pure Sine Wave |
| Inverter to Bypass Transfer Time (ms) | 10 (Typical) |
| Max Battery Mode Efficiency | 93% |
| Overload Protection | 102%~110%, 5min; 110%~125%, 10s; >125%, 5s |
| Battery | |
| Energy (kWh) | 10 |
| Number of Battery Modules | 1 |
| Rated Battery Voltage (VDC) | 48 |
| Battery Voltage Range (V) | 42~54.75/44.8~58.4 |
| Rated Charge/Discharge Rate | 1C |
| Max MPPT Charging Current (A) | 200 |
| Max AC Charging Current (A) | 120 |
| Max Hybrid Charging Current (A) | 200 |
| PV Charging | |
| Number of MPPT Trackers | 2 |
| Max PV Array Power (W) | 5500+5500 |
| Max PV Input Current (A) | 22+22 |
| Max Open Circuit Voltage (VDC) | 500+500 |
| MPPT Operating Range (V) | 120~450 |
| MPPT Tracking Efficiency | 99.9% |
| AC Input | |
| Input Voltage Range (VAC) | 90~280/170~280 |
| Frequency Range (Hz) | 50/60±0.3 |
| Physical Specifications | |
| Dimensions (D*W*H) mm | 250*690*960 |
| Weight (kg) | 128 |
| IP Rating | IP20 |
| Operating Temperature Range (°C) | -10~55 |
| Storage Temperature Range (°C) | -25~60 |
| Noise (dB) | <60 |
| Cooling Method | Forced Air Cooling (Adjustable Fan Speed) for Inverter / Natural Cooling for Battery |
Note: The above data is for reference only and is subject to change without prior notice. Special voltages can be customized.
