5000 Cycles Scalable Energy Storage 25.6V 200Ah LiFePO4 Server Rack Batteries

Quality 5000 Cycles Scalable Energy Storage 25.6V 200Ah LiFePO4 Server Rack Batteries factory
Quality 5000 Cycles Scalable Energy Storage 25.6V 200Ah LiFePO4 Server Rack Batteries factory

Basic Properties

Place of Origin:CHINA
Certification:CE

Trading Properties

Minimum Order Quantity:1
Price:$700-900
Payment Terms:Western Union,T/T,D/P,D/A,L/C
Specifications
Cooling Method: Natural Air Cooling / Intelligent Fan Nominal Energy (kWh): 5.12
Operating Voltage Range (M）: 22.4~29.2 Maximum Continuous Charge/Discharge Current (A): 1C (Customizable)
Highlight

scalable energy storage 24v

,

5000 cycles scalable energy storage

,

scalable 24v 200ah lifepo4
Product Description

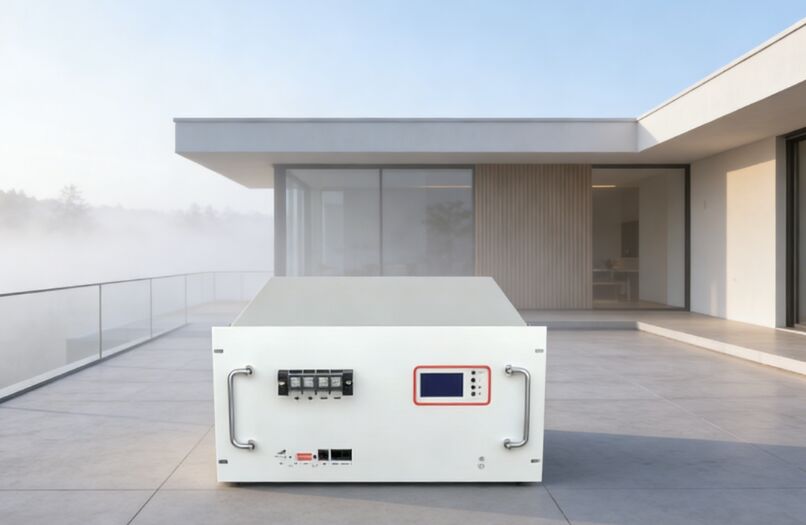

24V 200Ah LiFePO₄ Deep Cycle Battery
High Capacity & Scalable Energy Storage Solution
This 24V 200Ah LiFePO₄ deep cycle battery features high-quality cells in series-parallel configuration and an advanced Battery Management System (BMS). Designed as a reliable, long-life, large-capacity energy storage solution, it can function as an independent DC power supply or be paralleled with multiple units to create higher-power energy storage systems. Ideal for communication base stations, data centers, residential and industrial energy storage, RV/Marine applications, and seamlessly integrates with UPS and photovoltaic power generation equipment.
Key Features
  • Compact size and lightweight design for easy transport and installation, saving valuable space
  • Integrated LED display with direct inverter communication for real-time battery status monitoring
  • Standard cycle life exceeding 5,000 cycles, significantly outperforming traditional lead-acid batteries
  • Supports multi-unit parallel operation with automatic addressing for flexible capacity expansion
  • Simple installation process and convenient operation & maintenance, reducing deployment costs
Application Scenarios
  • Communication base station backup power
  • Data center standby power
  • Residential energy storage power supply
  • Industrial energy storage power supply
  • RV/Marine energy storage systems
  • Photovoltaic energy storage
  • UPS backup power supply
24V 200Ah LiFePOâ‚„ Deep Cycle Battery technical diagram and specifications
Technical Specifications
Model CH--GBP24-200R
Nominal Voltage (V) 25.6
Cell Specification 100
Nominal Capacity (Ah) 200
Nominal Energy (kWh) 5.12
Operating Voltage Range (V) 22.4~29.2
Recommended Charging Voltage (V) 27.6
Recommended Discharge Cut-off Voltage (V) 24
Standard Charge/Discharge Current (A) 0.5C
Maximum Continuous Charge/Discharge Current (A) 1C (Customizable)
Operating Temperature (°C) -30~60 (Recommend 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommend 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling / Intelligent Fan
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 689*495*162
Weight (kg) 49
Note: The above data is for reference only. In case of any changes, no further notice will be given.
