| MOQ: | 1 |
| Price: | $500-700 |
| Payment Terms: | Western Union,T/T,D/P,D/A,L/C |

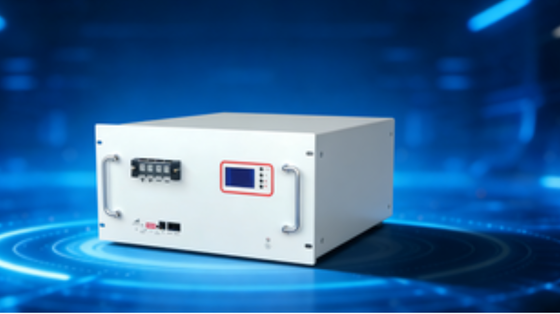

This product is composed of high-quality lithium iron phosphate cells (by series and parallel) and advanced BMS management system. It can be used as an independent DC power supply or as a "basic unit" to form a variety of energy storage lithium battery power systems, with high reliability and longer life. It can be used as backup power supply of communication base station, backup power supply of digital center, household energy storage power supply, industrial energy storage power supply, etc. It can be seamlessly connected with main equipment such as UPS and photovoltaic power generation.
Compact dimensions and lightweight construction make it easy to transport, install, and integrate into various applications without occupying excessive space.
Built-in screen allows direct selection of inverter communication protocols, simplifying system configuration and ensuring seamless compatibility with various inverter brands.
Delivers over 5000 cycles at standard charge/discharge rates, ensuring long-term reliability and reducing the need for frequent battery replacement.
Designed for straightforward installation and simplified maintenance procedures, minimizing setup time and ongoing operational effort.
Supports parallel connection of multiple units for easy capacity expansion. Features automatic addressing functionality, eliminating the need for manual DIP switch configuration and simplifying system setup.
Equipped with LED indicators that provide clear visual status feedback, allowing quick monitoring of battery operating status and system health.
| Model | CH—GBP24-100R |
|---|---|
| Nominal Voltage (V) | 25.6 |
| Cell Specification | 100 |
| Nominal Capacity (Ah) | 100 |
| Nominal Energy (kWh) | 2.56 |
| Operating Voltage Range (V) | 22.4~29.2 |
| Recommended Charging Voltage (V) | 27.6 |
| Recommended Discharge Cut-off Voltage (V) | 24 |
| Standard Charge/Discharge Current (A) | 0.5C |
| Maximum Continuous Charge/Discharge Current (A) | 1C (Customizable) |
| Operating Temperature (°C) | -30~ 60 (Recommend 10~ 35) |
| Allowable Humidity Range(%RH) | <85 |
| Storage Temperature(°C) | -20~65(Recommend 10~ 35) |
| Charging Temperature(°C) | 0~55 |
| Discharging Temperature(°C) | -10~55 |
| Protection Level | IP20 |
| Cooling Method | Natural Air Cooling / Intelligent Fan |
| Cycle Life | 5000+Times at 80% DOD |
| Maximum Dimension(D*W*H)mm | 689*495*162 |
| Weight(kg) | 28 |
| Note: The maximum charge/discharge rate of models GBP48-200R and BP51.2-200R can be customized to 1C. The above data is for reference only. In case of any changes, no further notice will be given. |
|
