White 14.4kwh 48V 100Ah Residential PV Battery Storage 48V Photovoltaic Battery Storage

Quality White 14.4kwh 48V 100Ah Residential PV Battery Storage 48V Photovoltaic Battery Storage factory
Quality White 14.4kwh 48V 100Ah Residential PV Battery Storage 48V Photovoltaic Battery Storage factory

Basic Properties

Place of Origin:CHINA
Certification:CE

Trading Properties

Minimum Order Quantity:1
Price:$2400-2600
Payment Terms:Western Union,T/T,D/P,D/A,L/C
Specifications
Color: White Rated Voltage: 48V
Highlight

residential pv battery storage

,

pv battery storage 48v

,

48v photovoltaic battery storage
Product Description
14.4kWh Lithium-ion Battery Stack System with Flexible Expansion for Residential PV Storage
Product Overview

This advanced residential energy storage system features a stackable design for flexible expansion and elegant aesthetics. With one-button startup and side-hidden wiring for customer convenience, the system directly communicates with mainstream inverter protocols. Comprehensive multi-level battery protection strategies and fault isolation measures ensure safe operation for small commercial and home energy storage applications.

Key Features
  • Bilingual display (Chinese/English) summarizing all PACK information
  • Direct inverter communication protocol selection via screen interface
  • Master power switch for one-touch system operation
  • Stackable design enables flexible battery capacity expansion
  • Multiple cluster parallel connection supporting up to eight battery packs
Manufacturing Advantages
Factory Direct Supply
Own production base with direct order processing ensures optimal supply efficiency
Flexible Production
Support for small batch trial orders with minimum order quantity of 1 unit
Customization Service
Product parameters including voltage and interface can be customized to customer requirements

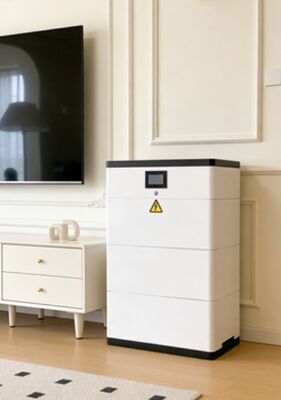

14.4kWh Lithium-ion Battery Stack System - Product visualization
Technical Specifications
Parameter Specification
Model CH--GLV1-P15
Battery Module Model LFP48V/100Ah
Battery Module Nominal Energy 4.8 kWh
Rated Voltage 48V
Number of Cell Modules in Single Cluster 3
Single Cluster Battery Energy 14.4 kWh
Maximum number of Clusters in Parallel 8
Operating Voltage Range 42-54.75V
Recommended Charging Voltage 51.75V
Recommended Discharge Cut-off Voltage 45V
Maximum Charge/Discharge Current 0.5C
Unit Cluster Size (D×W×H) 425×700×864 mm
Unit Cluster Weight 199 kg
Communication Mode CAN/485/Bluetooth
Operating Temperature -30°C to 60°C (Recommended: 10°C to 35°C)
Storage Temperature -20°C to 65°C (Recommended: 10°C to 35°C)
Humidity <85% RH
Protection Level IP20
Cooling Method Natural Air Cooling
Cycle Life ≥5000 cycles
Safety Standards CE, UN38.3, MSDS
