Home Solar Battery Storage 10.24kWh 51.2V Solar Power Batteries For Home

MOQ:	1
Price:	$1400-1600
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Weight:

50 Kg

Application:

Residential And Commercial Energy Storage

Installation:

Wall-mounted

Battery Type:

Lithium-ion

Dimensions:

600mm X 400mm X 150mm

Operating Temperature Range:

-20°C To 60°C

Communication Interface:

Wi-Fi / RS485

Safety Features:

Overcharge, Over-discharge, Short Circuit Protection

Highlight:

home solar battery storage 10.24kwh

51.2v solar power batteries for home

10.24kwh solar power batteries for home

Product Description

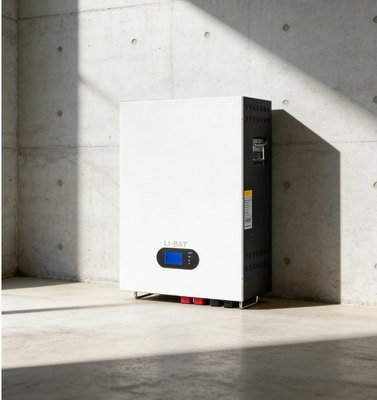

10.24 kWh 51.2V LiFePO4 Wall-Mounted Storage Battery

5-Year Warranty | Factory Direct Supply

Product Overview

This modular wall-mounted storage battery features high integration for space-saving installation and utilizes high-performance lithium iron phosphate (LiFePO4) cathode material with excellent cell consistency and a design life exceeding 10 years.

Key Features

Wall-mounted installation saves valuable space
Parallel capability for easy system expansion with automatic addressing
Standard LCD display for real-time battery status monitoring
Direct screen selection of inverter communication protocols
Environmentally friendly materials free of heavy metals
Standard cycle life exceeding 5000 cycles at 80% depth of discharge
Front operation and wiring for easy installation and maintenance
Comprehensive protection systems including over-temperature, over-charge, over-discharge, and short-circuit protection

Compatibility & Communication

Seamlessly connects with UPS systems, photovoltaic power generation equipment, and other main equipment. Features multiple communication interfaces including CAN/RS485, customizable to customer requirements for remote monitoring and flexible system use.

Technical Specifications

Parameter	Specification
Model	CH--GBP51.2-200W
Nominal Voltage	51.2V
Cell Specification	100
Nominal Capacity	200Ah
Nominal Energy	10.24 kWh
Operating Voltage Range	44.8~58.4V
Recommended Charging Voltage	55.2V
Recommended Discharge Cut-off Voltage	48V
Standard Charge/Discharge Current	0.5C
Maximum Continuous Charge/Discharge Current	1C (Customizable)
Operating Temperature	-30~60°C (Recommended 10~35°C)
Allowable Humidity Range	<85% RH
Storage Temperature	-20~65°C (Recommended 10~35°C)
Charging Temperature	0~55°C
Discharging Temperature	-10~55°C
Protection Level	IP20
Cooling Method	Natural Air Cooling/Intelligent Fan
Cycle Life	5000+ Times at 80% DOD
Maximum Dimensions (DWH)	682465276 mm
Weight	96 kg

Manufacturing & Customization

Factory direct supply from our own production base ensures efficient order processing. We support flexible production capacity with minimum order quantity of 1 unit for trial orders. Customization services available for product parameters including voltage, interfaces, and other specifications to meet specific customer requirements.
