Home Solar Battery Storage 10.24kWh 51.2V 200Ah Solar Power Batteries For Home
Basic Properties
Place of Origin:China
Certification:CE
Trading Properties
Minimum Order Quantity:1
Price:$1400-1600
Payment Terms:L/C,D/A,D/P,T/T,Western Union
Specifications
| Weight: | 50 Kg | Application: | Residential And Commercial Energy Storage |
|---|---|---|---|
| Installation: | Wall-mounted | Battery Type: | Lithium-ion |
| Dimensions: | 600mm X 400mm X 150mm | Operating Temperature Range: | -20°C To 60°C |
| Communication Interface: | Wi-Fi / RS485 | Safety Features: | Overcharge, Over-discharge, Short Circuit Protection |
| Highlight | home solar battery storage 10.24kwh,51.2v solar power batteries for home,10.24kwh solar power batteries for home |
||
Product Description

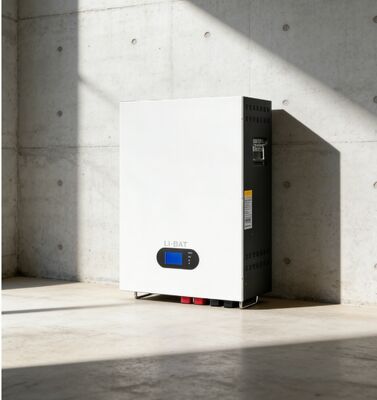

10.24 kWh 51.2V LiFePO4 Wall-Mounted Storage Battery
5-Year Warranty | Factory Direct Supply
Product Overview
This modular wall-mounted storage battery features high integration for space-saving installation and utilizes high-performance lithium iron phosphate (LiFePO4) cathode material with excellent cell consistency and a design life exceeding 10 years.
Key Features
- Wall-mounted installation saves valuable space
- Parallel capability for easy system expansion with automatic addressing
- Standard LCD display for real-time battery status monitoring
- Direct screen selection of inverter communication protocols
- Environmentally friendly materials free of heavy metals
- Standard cycle life exceeding 5000 cycles at 80% depth of discharge
- Front operation and wiring for easy installation and maintenance
- Comprehensive protection systems including over-temperature, over-charge, over-discharge, and short-circuit protection
Compatibility & Communication
Seamlessly connects with UPS systems, photovoltaic power generation equipment, and other main equipment. Features multiple communication interfaces including CAN/RS485, customizable to customer requirements for remote monitoring and flexible system use.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CH--GBP51.2-200W |
| Nominal Voltage | 51.2V |
| Cell Specification | 100 |
| Nominal Capacity | 200Ah |
| Nominal Energy | 10.24 kWh |
| Operating Voltage Range | 44.8~58.4V |
| Recommended Charging Voltage | 55.2V |
| Recommended Discharge Cut-off Voltage | 48V |
| Standard Charge/Discharge Current | 0.5C |
| Maximum Continuous Charge/Discharge Current | 1C (Customizable) |
| Operating Temperature | -30~60°C (Recommended 10~35°C) |
| Allowable Humidity Range | <85% RH |
| Storage Temperature | -20~65°C (Recommended 10~35°C) |
| Charging Temperature | 0~55°C |
| Discharging Temperature | -10~55°C |
| Protection Level | IP20 |
| Cooling Method | Natural Air Cooling/Intelligent Fan |
| Cycle Life | 5000+ Times at 80% DOD |
| Maximum Dimensions (D*W*H) | 682*465*276 mm |
| Weight | 96 kg |
Manufacturing & Customization
Factory direct supply from our own production base ensures efficient order processing. We support flexible production capacity with minimum order quantity of 1 unit for trial orders. Customization services available for product parameters including voltage, interfaces, and other specifications to meet specific customer requirements.
