150A Home Power Backup Inverter 220VAC 110VAC Grid Tie Solar Inverter 11000W

150A Home Power Backup Inverter 220VAC 110VAC Grid Tie Solar Inverter 11000W

MOQ: 1
Price: $500-700
Payment Terms: Western Union,T/T,D/P,L/C,D/A
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Max PV Input Power:
25000W
MPPT Input Voltage Range:
90-500Vdc
Max PV Charging Current:
150A
Max Charging Current:
150A
Operating Temperature:
-10°C-50°C
Noise:
≤50dB
Highlight:

150a home power backup inverter

,

home power backup inverter 220vac

,

110vac grid tie solar inverter

Product Description

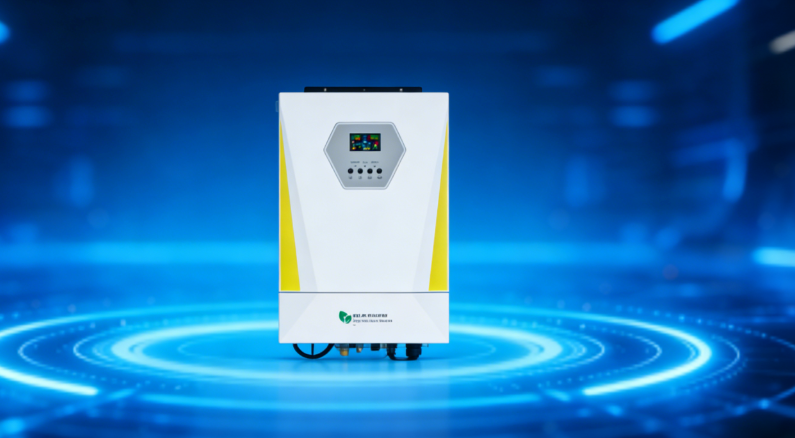

Home Energy Storage 11kW Grid-Tie Solar Inverter
High-efficiency grid-tied solar inverter featuring wide PV input voltage range, exceptional conversion efficiency, and built-in WiFi connectivity. Perfect for residential energy storage and industrial PV-storage-charging integrated applications.
Product Overview
This high-performance 11kW solar hybrid inverter, part of the ED Series, delivers reliable and efficient energy conversion for residential energy storage and industrial PV-storage-charging integrated systems. It incorporates advanced MPPT technology, pure sine wave output, and flexible grid-tied operation modes to meet diverse application needs.
Key Features
  • Low no-load loss - lower than high-frequency machines with the same power rating
  • Pure sine wave output suitable for different loads
  • Adjustable parameters customizable to user needs
  • Slim body design for convenient installation and transportation
  • Battery reverse connection protection with fuse-free switch for safer installation
  • Built-in MPPT solar controller
  • High output voltage precision to protect your appliances
  • WiFi and lithium battery BMS communication support
150A Home Power Backup Inverter 220VAC 110VAC Grid Tie Solar Inverter 11000W 0
Technical Specifications
Model CH—ED11048EMH
AC Input Voltage 220VAC (Standard) / 110VAC (Custom)
Input Voltage Range 90~280VAC±3V (Normal Mode)
170~280VAC±3V (UPS Mode)
Input Frequency 50/60Hz±5%
Rated Output Power (Battery Mode) 11000W
Rated Output Power (PV Mode) 12000W
Output Voltage 220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Output Waveform Pure Sine Wave
Transfer Time ≤10ms (UPS Mode) / ≤20ms (INV Mode)
Peak Power 22000VA
Battery Rated Voltage 48Vdc
PV Charging Mode MPPT*2
Max PV Input Power 25000W
MPPT Input Voltage Range 90-500Vdc
Optimal VMP Range 300-400Vdc
Max PV Input Voltage 500Vdc
Operating Temperature -10°C to 50°C
Noise Level ≤50dB
