25.6V 100Ah Scalable Energy Storage 2.56kWh Solar Battery Backup For Home

Quality 25.6V 100Ah Scalable Energy Storage 2.56kWh Solar Battery Backup For Home factory
Quality 25.6V 100Ah Scalable Energy Storage 2.56kWh Solar Battery Backup For Home factory

Basic Properties

Place of Origin:CHINA
Certification:CE

Trading Properties

Minimum Order Quantity:1
Price:$500-700
Payment Terms:L/C,D/A,D/P,T/T,Western Union
Specifications
Cell Specification: 100 Operating VoltageRange (V): 22.4~29.2
Recommended Discharge Cut-offVoltage (V): 24 Cycle Life: 5000+Times At 80% DOD
Highlight

24V 100Ah Scalable Energy Storage

,

Scalable Energy Storage 2.56kWh

,

2.56kWh Solar Battery Backup For Home
Product Description

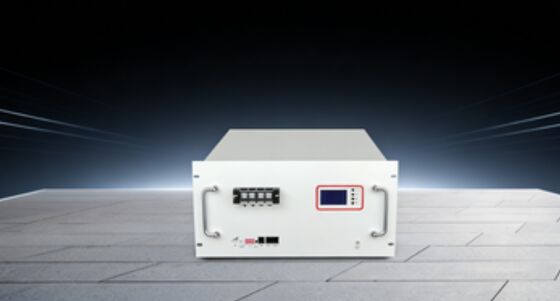

24V 100Ah LiFePO₄ Deep Cycle Battery
Long Cycle Life & Scalable Energy Storage Solution
This high-performance 24V 100Ah LiFePO₄ deep cycle battery features premium LiFePO₄ cells in series-parallel configuration and an advanced Battery Management System (BMS). Designed as a reliable, long-life energy storage solution, it serves as an independent DC power supply or can be paralleled with multiple units to create higher-power energy storage systems. Ideal for communication base stations, data centers, residential and industrial energy storage applications, with seamless compatibility for UPS systems and photovoltaic power generation equipment.
Key Features
  • Compact size and lightweight design for easy transportation and installation, saving valuable space
  • Integrated LED display with direct inverter communication for real-time battery status monitoring
  • Exceptional cycle life exceeding 5,000 cycles, significantly outperforming traditional lead-acid batteries
  • Multi-unit parallel operation with automatic addressing for flexible system capacity expansion
  • Streamlined installation process and convenient operation and maintenance, reducing deployment costs
Application Scenarios
  • Communication base station backup power
  • Data center standby power
  • Residential energy storage systems
  • Industrial energy storage solutions
  • RV and marine energy storage
  • Photovoltaic energy storage systems
  • UPS backup power supply
24V 100Ah LiFePOâ‚„ Deep Cycle Battery technical diagram and specifications
Technical Specifications
Model CH--GBP24-100R
Nominal Voltage (V) 25.6
Cell Specification 100
Nominal Capacity (Ah) 100
Nominal Energy (kWh) 2.56
Operating Voltage Range (V) 22.4~29.2
Recommended Charging Voltage (V) 27.6
Recommended Discharge Cut-off Voltage (V) 24
Standard Charge/Discharge Current (A) 0.5C
Maximum Continuous Charge/Discharge Current (A) 1C (Customizable)
Operating Temperature (°C) -30~60 (Recommend 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommend 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling / Intelligent Fan
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 689*495*162
Weight (kg) 28
Note: The maximum charge/discharge rate of models GBP48-200R and BP51.2-200R can be customized to 1C. The above data is for reference only. In case of any changes, no further notice will be given.
