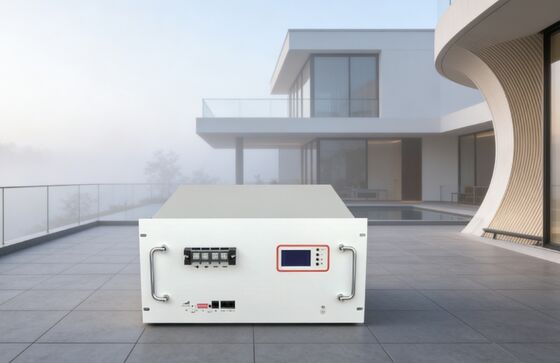

5.12kWh LiFePO4 25.6V 200Ah Server Battery Rack Scalable Home Energy Storage

Quality 5.12kWh LiFePO4 25.6V 200Ah Server Battery Rack Scalable Home Energy Storage factory
Quality 5.12kWh LiFePO4 25.6V 200Ah Server Battery Rack Scalable Home Energy Storage factory

Trading Properties

Price:$700-900
Payment Terms:L/C,D/A,D/P,T/T,Western Union
Specifications
Charging Temperature (°C): 0~55 Storage Temperature (°C): -20~65 (Recommend 10~35)
Nominal Energy (kWh): 5.12 Cell Specification: 100
Highlight

5.12kwh lifepo4 24v 200ah

,

200ah server battery rack

,

scalable home energy storage
Product Description
24V 200Ah LiFePO4 Deep Cycle Battery Pack
Home & Industrial Energy Storage System
This 24V 200Ah LiFePO₄ deep cycle battery features high-quality cells in series-parallel configuration and an advanced Battery Management System (BMS). Designed as a reliable, long-life, large-capacity energy storage solution, it can function as an independent DC power supply or be paralleled with multiple units to create higher-power energy storage systems.
Key Features
  • Compact size and lightweight design for easy transport and installation, saving valuable space
  • Integrated LED display with direct inverter communication for real-time battery status monitoring
  • Standard cycle life exceeding 5,000 cycles, significantly outperforming traditional lead-acid batteries
  • Supports multi-unit parallel operation with automatic addressing for flexible capacity expansion
  • Simple installation process and convenient operation & maintenance, reducing deployment costs
Application Scenarios
  • Communication base station backup power
  • Data center standby power
  • Residential energy storage power supply
  • Industrial energy storage power supply
  • RV/Marine energy storage systems
  • Photovoltaic energy storage
  • UPS backup power supply
24V 200Ah LiFePO4 Deep Cycle Battery Pack - Home and Industrial Energy Storage System
Technical Specifications
Model CH--GBP24-200R
Nominal Voltage (V) 25.6
Cell Specification 100
Nominal Capacity (Ah) 200
Nominal Energy (kWh) 5.12
Operating Voltage Range (V) 22.4~29.2
Recommended Charging Voltage (V) 27.6
Recommended Discharge Cut-off Voltage (V) 24
Standard Charge/Discharge Current (A) 0.5C
Maximum Continuous Charge/Discharge Current (A) 1C (Customizable)
Operating Temperature (°C) -30~60 (Recommend 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommend 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling / Intelligent Fan
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 689*495*162
Weight (kg) 49
Note: The above data is for reference only. In case of any changes, no further notice will be given.
