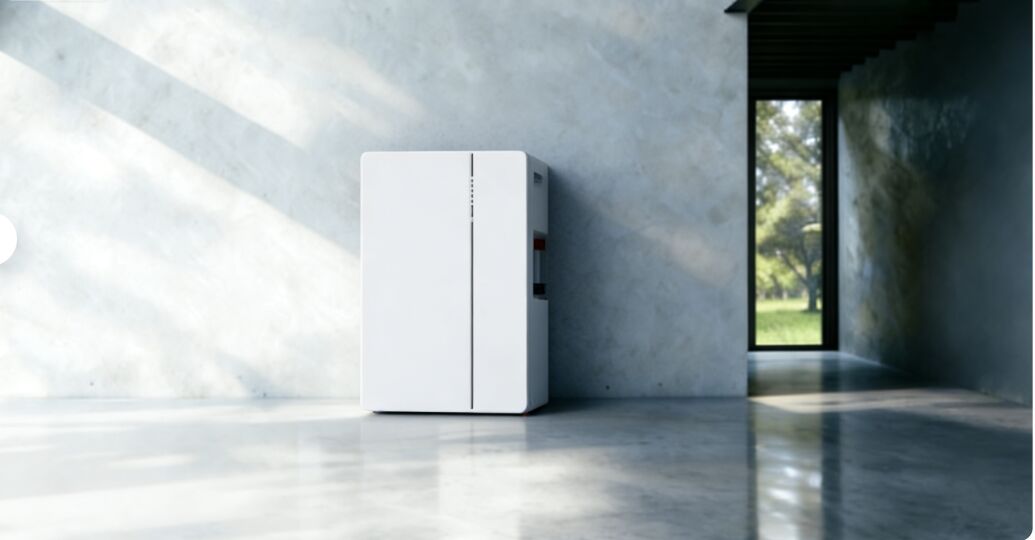

10.24kWh 51.2V 200Ah Lithium Iron Phosphate Home Energy Storage LiFePO4
Basic Properties
Place of Origin:CHINA
Certification:CE
Trading Properties
Minimum Order Quantity:1
Price:$1300-1500
Payment Terms:L/C,D/A,D/P,T/T,Western Union
Specifications
| Battery Type: | LiFePO4 | Rated Energy: | 10.24kwh |
|---|---|---|---|
| Dimensions (W/H/D): | 600×720×160 Mm | Communication: | CAN2.0/RS485 |
| Weight: | 87kg | Scalability: | Parallel Connection Of Up To 16 Units |
| Highlight | 10.24kWh 51.2V Home Energy Storage,Lithium Iron Phosphate Home Energy Storage,Home Energy Storage LiFePO4 |
||
Product Description
10.24kWh 51.2V Lithium Iron Phosphate Battery
This low-voltage energy storage battery provides efficient and reliable energy storage solutions for households, businesses, and specialized applications. Featuring top-tier lithium iron phosphate battery cells with high safety, stability, energy density, and long cycle life. Built-in intelligent battery management system (BMS) comprehensively monitors and controls the energy storage system to ensure safe, stable, and high-performance operation.
Product Highlights
Safety Features
- A-grade lithium iron phosphate battery with high safety performance
- Intelligent BMS with multiple safety functions for enhanced protection
- Optional pre-setting fire extinguisher system available
Long Lifespan
- Cycle life exceeding 6000 cycles (70% SOH)
- High parallel balancing current ensures battery consistency
Convenient & Smart Operation
- Bluetooth/WiFi connectivity for real-time monitoring via mobile app
- Remote software upgrade capability
- Automatic battery module networking for easy maintenance
Flexible Installation
- Compact size with high power density for space-constrained installations
- Dual-positive and dual-negative terminal design enables direct stacking and parallel connection without additional busbars
- Compatible with mainstream low-voltage energy storage inverters
Technical Specifications
| Model | CH--LVWES10-G1 |
|---|---|
| Battery Type | LiFePO4 |
| Rated Energy | 10.24 kWh |
| Rated Capacity | 200 Ah |
| Scalability | Parallel connection of up to 16 units |
| Nominal Voltage | 51.2 V |
| Operating Voltage | 43.2~58.4 V |
| Charge/Discharge Current (Recommended) | 100 A |
| Charge/Discharge Current (Maximum) | 200 A |
| Recommended Depth of Discharge | ≤90% |
| Dimensions (W/H/D) | 600×720×160 mm |
| Weight | 87 kg |
| IP Rating | IP20 |
| Operating Temperature | Charge: 0~+60°C / Discharge: -20~+60°C |
| Storage Temperature | -20~+35°C |
| Cycle Life | ≥6000 cycles (25±2°C, 0.5C/0.5C, 70% EOL) |
| Installation | Wall-Mounted/Floor-Mounted (optional wheel) |
| Communication | CAN2.0/RS485 |
| Warranty Period | 10 years |
| Certification | IEC62619-CB, CE, UN38.3 |
Compatible Inverters
SMA, VICTRON, SE, DEYE, SOLIS, GOODWE, GROWATT, LUXPOWERTEK, SENERGY, SRD, and other mainstream low-voltage energy storage inverters.
Manufacturing Advantages
Factory Direct Supply: Own production base ensures efficient order processing.
Flexible Production Capacity: Supports small batch trial orders (MOQ 1 unit).
Customization Service: Product parameters (voltage, interface, etc.) can be customized per customer requirements.
