Residential Energy Storage 5.12kWh 25.6V 200Ah Battery Power Storage For Homes
Basic Properties
Place of Origin:china
Certification:CE
Trading Properties
Minimum Order Quantity:1
Price:$700-$1000
Payment Terms:L/C,D/A,D/P,T/T,Western Union
Specifications
| Voltage: | 48 V | Capacity: | 5 KWh |
|---|---|---|---|
| Safety Certifications: | UL 9540, IEC 62619 | Warranty: | 10 Years |
| Communication Interface: | CAN, RS485, WiFi | Mounting: | Wall-mounted |
| Highlight | residential energy storage 5kwh,25.6v battery power storage for homes,residential battery power storage for homes |
||
Product Description

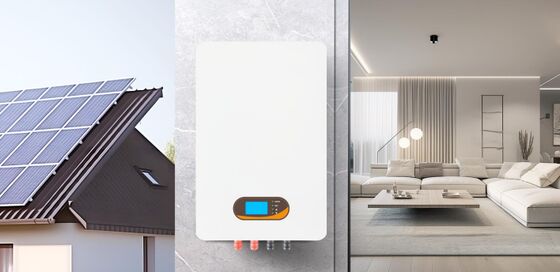

5KWH Power Wall Type Lithium Iron Phosphate Battery
Product Overview
This modular-designed power wall battery features high integration for space-saving installation. Utilizing high-performance lithium iron phosphate cathode material, the battery cells demonstrate excellent consistency with a design lifespan exceeding 10 years. Front-facing operation, wiring, and one-key power switching enable easy installation, maintenance, and operation.
Advanced Protection & Compatibility
Comprehensive safety functions include over-temperature alarm protection, over-charge and over-discharge protection, and short-circuit protection. The system offers strong compatibility with seamless integration to UPS systems, photovoltaic power generation, and other primary equipment. Multiple communication interfaces including CAN/RS485 can be customized according to customer requirements for remote monitoring and flexible system utilization.
Key Product Features
- Wall-mounted installation saves valuable space
- Multiple parallel connection capability for easy system expansion with automatic addressing (no manual coding required)
- Standard LCD display for real-time battery status monitoring and direct inverter communication selection
- Environmentally friendly materials free from heavy metals and pollutants
- Standard cycle life exceeding 5000 cycles
other
Factory Direct Supply: Own production base with direct order processing to ensure supply efficiency
Flexible Production Capacity: Support for small batch trial orders (MOQ 1 unit)
Customization Service: Product parameters (such as voltage, interface) can be customized according to customer requirements
| Model | CH-GBP24-200W |
|---|---|
| Nominal Voltage (V) | 25.6 |
| Cell Specification | 100 |
| Nominal Capacity (Ah) | 200 |
| Nominal Energy (kWh) | 5.12 |
| Operating Voltage Range (V) | 22.4~29.2 |
| Recommended Charging Voltage (V) | 27.6 |
| Recommended Discharge Cut-off Voltage (V) | 24 |
| Standard Charge/Discharge Current (A) | 0.5C |
| Maximum Continuous Charge/Discharge Current (A) | 1C (Customizable) |
| Operating Temperature (°C) | -30~60 (Recommended 10~35) |
| Allowable Humidity Range (%RH) | <85 |
| Storage Temperature (°C) | -20~65 (Recommended 10~35) |
| Charging Temperature (°C) | 0~55 |
| Discharging Temperature (°C) | -10~55 |
| Protection Level | IP20 |
| Cooling Method | Natural Air Cooling/Intelligent Fan |
| Cycle Life | 5000+ Times at 80% DOD |
| Maximum Dimension (D*W*H) mm | 687*450*186 |
| Weight (kg) | 49 |
