5.12kWh Residential Energy Storage 51.2V 100Ah Wall Mounted Battery Storage
Basic Properties
Place of Origin:China
Certification:CE
Trading Properties
Minimum Order Quantity:1
Price:$700-1000
Payment Terms:L/C,D/A,D/P,T/T,Western Union
Specifications
| Safety Features: | Overcharge Protection, Short Circuit Protection. | Battery Type: | Lithium-ion |
|---|---|---|---|
| Cycle Life: | 6000 Cycles | Weight: | 50 Kg |
| Working Temp: | -20~60℃ | ||
| Highlight | 5.12kwh residential energy storage,residential energy storage 51.2v,51.2v wall mounted battery storage |
||
Product Description

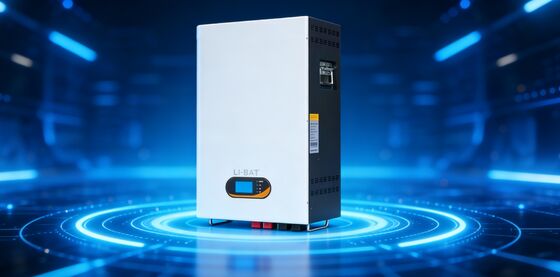

Wall-Mounted LiFePO4 Battery 51.2V 5.12kWh Home Solar System
Product Overview
This wall-mounted lithium iron phosphate battery features modular design with high integration, saving valuable installation space. Built with high-performance LiFePO4 cathode material, the battery cells offer excellent consistency and a design lifespan exceeding 10 years. Front-facing operation and wiring simplify installation, maintenance, and operation.
Key Features & Protection
Comprehensive safety features include over-temperature alarm protection, over-charge and over-discharge protection, and short-circuit protection. Strong compatibility enables seamless integration with UPS systems, photovoltaic power generation, and other main equipment. Multiple communication interfaces (CAN/RS485) can be customized for remote monitoring and flexible system use.
Product Highlights
- Wall-mounted installation saves space
- Multiple units in parallel for easy expansion with automatic addressing
- Standard LCD display for real-time battery status monitoring
- Screen-direct selection of inverter communication
- Environmentally friendly materials free of heavy metals
- Standard cycle life exceeding 5000 cycles
Technical Specifications
| Model | CH--GBP51.2-100W |
|---|---|
| Nominal Voltage (V) | 51.2 |
| Cell Specification | 100 |
| Nominal Capacity (Ah) | 100 |
| Nominal Energy (kWh) | 5.12 |
| Operating Voltage Range (V) | 44.8~58.4 |
| Recommended Charging Voltage (V) | 55.2 |
| Recommended Discharge Cut-off Voltage (V) | 48 |
| Standard Charge/Discharge Current (A) | 0.5C |
| Maximum Continuous Charge/Discharge Current (A) | 1C (Customizable) |
| Operating Temperature (°C) | -30~60 (Recommended 10~35) |
| Allowable Humidity Range (%RH) | <85 |
| Storage Temperature (°C) | -20~65 (Recommended 10~35) |
| Charging Temperature (°C) | 0~55 |
| Discharging Temperature (°C) | -10~55 |
| Protection Level | IP20 |
| Cooling Method | Natural Air Cooling/Intelligent Fan |
| Cycle Life | 5000+ Times at 80% DOD |
| Maximum Dimension (D*W*H) mm | 687*450*186 |
| Weight (kg) | 49 |
Manufacturing & Customization
Factory direct supply from our own production base ensures efficient order processing. We support flexible production capacity with minimum order quantity of 1 unit for trial orders. Customization services available for product parameters including voltage and interface specifications to meet specific customer requirements.
Warranty: 5 Years Comprehensive Warranty
