CE Wall Mounted Battery Storage 4.8kWh 48V 100Ah Solar Batteries For Home Use

Quality CE Wall Mounted Battery Storage 4.8kWh 48V 100Ah Solar Batteries For Home Use factory
Quality CE Wall Mounted Battery Storage 4.8kWh 48V 100Ah Solar Batteries For Home Use factory

Basic Properties

Place of Origin:China
Certification:CE

Trading Properties

Minimum Order Quantity:1
Price:$700-$1000
Payment Terms:L/C,D/A,D/P,T/T,Western Union
Specifications
Battery Type: Lithium-ion Type: Energy Storage System
Dimensions: 687mm X 450mm X 186mm Weight: 46kg
Warranty: 10 Years Voltage: 48 V
Installation: Wall-mounted
Highlight

ce wall mounted battery storage

,

wall mounted battery storage 4.8kwh

,

4.8kwh solar batteries for home use
Product Description

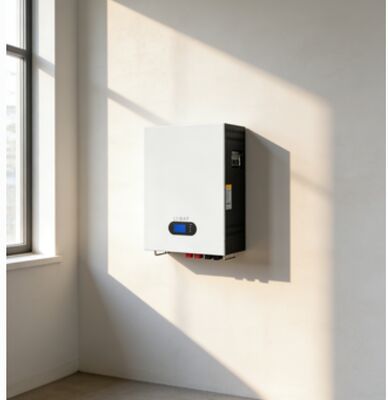

Home Storage Wall-Mounted LiFePO4 Battery 48V 4.8 kWh
5-Year Warranty | Factory Direct Supply
Product Overview
This modular wall-mounted battery system features high integration for space-saving installation. Utilizing high-performance lithium iron phosphate (LiFePO4) technology, it delivers exceptional cell consistency with a design life exceeding 10 years. Front-facing operation and wiring simplify installation, maintenance, and operation.
Key Features & Benefits
  • Wall-mounted design saves valuable floor space
  • Parallel expansion capability with automatic addressing
  • Integrated LCD display for real-time status monitoring
  • Direct inverter communication selection via screen
  • Environmentally friendly materials, free of heavy metals
  • Standard cycle life exceeding 5000 cycles
  • Comprehensive protection: over-temperature, over-charge, over-discharge, short-circuit
  • Strong compatibility with UPS, photovoltaic systems, and main equipment
  • Customizable communication interfaces (CAN/RS485)
Manufacturing Advantages
Factory direct supply ensures efficient order processing. Flexible production capacity supports small batch trial orders (MOQ 1 unit). Customization services available for product parameters including voltage and interface specifications.
CE Wall Mounted Battery Storage 4.8kWh 48V 100Ah Solar Batteries For Home Use 0
Technical Specifications
Model CH--GBP48-100W
Nominal Voltage (V) 48
Cell Specification 100
Nominal Capacity (Ah) 100
Nominal Energy (kWh) 4.8
Operating Voltage Range (V) 42~54.75
Recommended Charging Voltage (V) 51.75
Recommended Discharge Cut-off Voltage (V) 45
Standard Charge/Discharge Current (A) 0.5C
Maximum Continuous Charge/Discharge Current (A) 1C (Customizable)
Operating Temperature (°C) -30~60 (Recommended 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommended 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling/Intelligent Fan
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 687*450*186
Weight (kg) 46
