| MOQ: | 1 |
| Price: | $850-1100 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

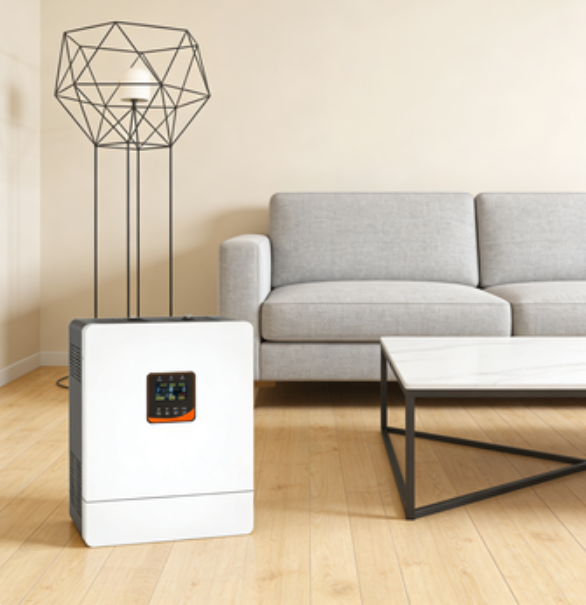

This advanced hybrid energy storage inverter integrates photovoltaic energy storage, utility power storage, and AC sine wave output in a single unit. Utilizing DSP control technology with sophisticated algorithms, it delivers exceptional response speed, reliability, and industrial-grade performance standards.
| Inverter Output | |
|---|---|
| Rated Output Power (W) | 10000 |
| Rated Output Power (VA) | 10000 |
| Maximum Peak Power (W) | 15000 |
| Motor Capacity (HP) | 6 |
| Rated AC Output | 230VAC (Adjustable 200/208/220/240VAC), 50/60Hz |
| Inverter and Bypass Switching Time | 10ms (typical) |
| Maximum Number of Parallel Units | 9 |
| Maximum Battery Inverter Efficiency | 93% |
| Overload Protection | 102%~110%, 5min; 110%~125%, 10s; >125%, 5s |
| Battery System | |
|---|---|
| Battery Type | Lithium / Lead-acid / User-defined |
| Rated Battery Voltage (VDC) | 48 |
| Battery Voltage Range (VDC) | 40~60 |
| Max MPPT Charge Current (A) | 200 |
| Max AC Charge Current (A) | 120 |
| Max Mixed Charge Current (A) | 200 |
| Charging Current Error (ADC) | ±3 |
| Charging Short Circuit Protection | Fuse |
| PV Charging | |
|---|---|
| Number of MPPT Trackers | 2 |
| Max PV Array Power (W) | 5500+5500 |
| Max PV Input Current (A) | 22+22 |
| Max Open Circuit Voltage (VDC) | 500+500 |
| MPPT Operating Range (VDC) | 120~450 |
| MPPT Tracking Efficiency | 99.9% |
| Mains Input | |
|---|---|
| Input Voltage Range (VAC) | 90~280/170~280 |
| Frequency Range (Hz) | 50/60±3 |
| Output Short-Circuit Protection | Circuit Breaker |
| Bypass Overload Current (A) | 63 |
| Physical Specifications | |
|---|---|
| Dimensions (D×W×H) mm | 130×445×630 |
| Weight (kg) | 27 |
| Waterproof Rating | IP20 |
| Working Temperature Range (°C) | -10~55 |
| Storage Temperature Range (°C) | -25~60 |
| Noise (dB) | <60 |
| Cooling Method | Forced Air Cooling (Adjustable Fan Speed) |
| Communication & Certifications | |
|---|---|
| Embedded Interface | RS485 / CAN / USB / Dry Contact |
| External Module | WIFI/4G |
| Safety Certification | CE (IEC62109-1) |
| EMC Certification | EN61000 |
