| MOQ: | 1 |
| Price: | $200-$500 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

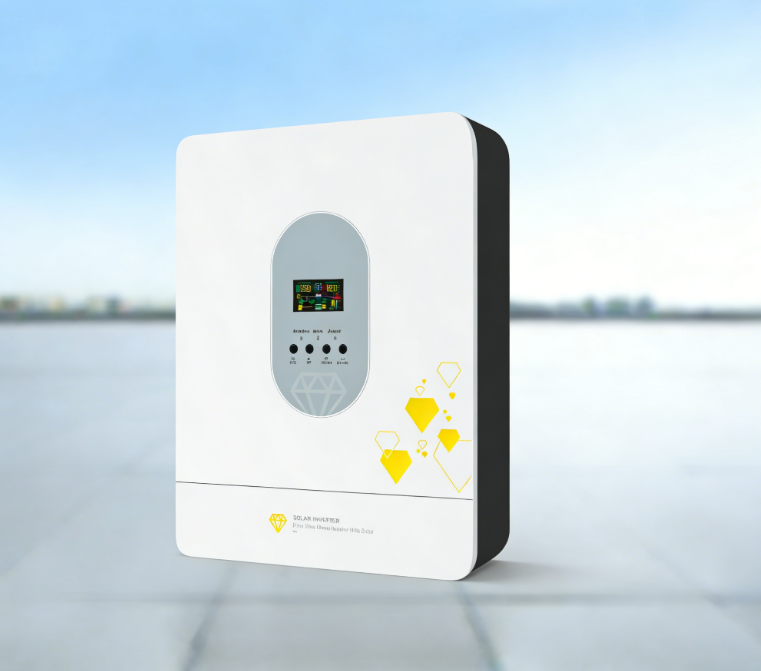

1.6kW Off-Grid Solar Inverter – Pure Sine Wave Output with Wall-Mounted Design for Residential Energy Storage
| Model | CH—ED2012EMH | |
| AC Input | AC Input Voltage | 220VAC (Standard) / 110VAC (Customizable) |
| Input Voltage Range | 90~280VAC±3V(Normal Mode) 170~280VAC±3V(UPS Mode) |
|
| Input Frequency | 50/60Hz±5% | |
| Rated Output Power (Battery Mode) | 1600W | |
| Output | Rated Output Power (PV Mode) | 1600W |
| Output Voltage | 220/230/240VAC±5% | |
| Output Frequency | 50/60Hz±0.1% | |
| Output Wave | Pure Sine Wave | |
| Transfer Time | ≤10ms(UPS Mode)/≤20ms(INV Mode) | |
| Peak Power | 3200VA | |
| Overload Ability | Battery Mode:1ls@105%-150% Load 2s@150%-200% Load 400ms@200% Load |
|
| Grid-connected Operation | Output Voltage | |
| Grid-Tied Voltage Range | ||
| Grid-Tied Frequency Range | ||
| Rated Output Curren | ||
| Power Factor Range | ||
| Peak Efficiency (DC/AC) | ||
| Battery | Rated Voltage | 12Vdc |
| Constant Charging Voltage (Adjustable) | 14.1Vdc | |
| Float Charging Voltage (Adjustable) | 13.5Vdc | |
| Charger | PV Charging Mode | MPPT |
| Max PV Input Power | 2000W | |
| MPPT Input Voltage Range | 30-500Vdc | |
| Optimal VMP Range | 300-400Vdc | |
| Max PV Input Voltage | 500Vdc | |
| Max PV Input Current | 13A | |
| Max PV Charging Current | 100A | |
| Max AC Charging Current | 60A | |
| Max Charging Current | 100A | |
| Display | LCD Interface | Can display operating mode/load/input/output |
| Interface | RS232 | Baud Rate 2400 |
| Expansion Slot Communication Interface | Lithium Battery BMS Communication Card, WIFI/Pitch2.54mm | |
| Parallel Interface / Parallel Port | Not support Parallel | |
| Ambient Temperature | Operating Temperature | -10°C-50°C |
| Operating Humidity | -10°C-60°C | |
| Storage Temperature | 20%-90% Non Condensing | |
| Noise | ≤50dB | |
