Wall Mounted AC Charging Pile 21kW AC Fast Charging Wallbox IP54

Quality Wall Mounted AC Charging Pile 21kW AC Fast Charging Wallbox IP54 factory
Quality Wall Mounted AC Charging Pile 21kW AC Fast Charging Wallbox IP54 factory

Basic Properties

Place of Origin:China
Certification:CE/CB

Trading Properties

Minimum Order Quantity:1
Price:$350-550
Payment Terms:L/C,D/A,D/P,T/T,Western Union
Specifications
Product Size: 356*221*136mm(H*W*D) Net Weight: 3.4kg
Installation: Wall-mounted/Floor-mounted(stand Support) Working Humidity: 5%~95%
Protection Level: IP54 4G: Default/Optional
Highlight

Wall Mounted AC Charging Pile

,

21kW AC Fast Charging Wallbox

,

AC Fast Charging Wallbox IP54
Product Description
Home Commercial 21kW Wall Mounted AC Charging Pile
Compact, safe charging solution with IP54 protection rating for residential and commercial applications.
Safe and Durable Design
  • Sheet metal + tempered glass chassis provides rainproof and UV-resistant protection
  • Suitable for both outdoor and underground parking lots
  • Compact design with easy installation and IP54 protection rating
  • Wall-mounted or ground stand installation options
  • Cost-effective solution for residential and commercial use
  • Optional 4.3-inch high-brightness, low-temperature resistant LCD screen
  • Standard 4.5-meter rolling charging gun (custom lengths available)
  • Scan and touch operation capabilities
  • Supports card swiping (offline) and QR code scanning (online) operation
Intelligent Control Features
  • Multiple networking options: Ethernet, 4G, Wi-Fi
  • Server background connectivity compatible with multiple charging platforms
  • Supports WeChat payment and card payment methods
  • Available for both online and offline operation
  • Remote upgrade capability
Comprehensive Safety Protection
  • Type A leakage protection with extended Type B leakage protection function
  • Multiple protection systems including over-current, over-voltage, emergency stop, and over-temperature protection

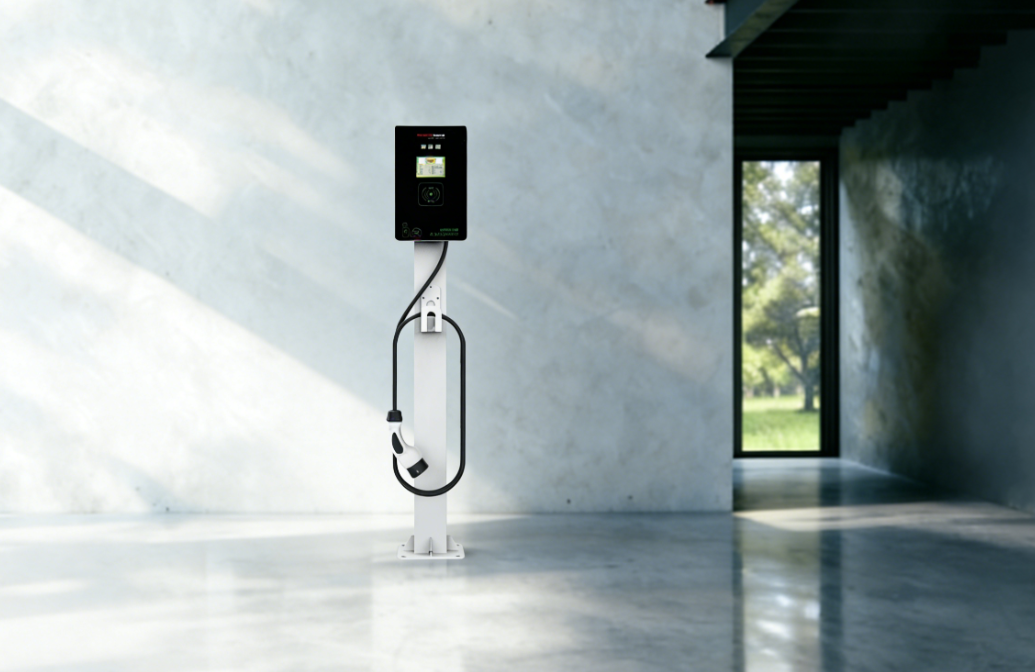

21kW Wall Mounted AC Charging Pile - Front view showing compact design with LCD screen and charging connector
Technical Specifications
Specification Model: CH-AC0021-BE-34
Input
Type of Input Power 3P+N+PE
Rated Voltage 380V AC
Rated Current 32A
Frequency 50/60Hz
Output
Output Voltage 380V AC
Maximum Current 32A
Rated Power 21kW
User Interface
Charging Connector National standard charging gun, CCS1, CCS2
Cabinet Material Galvanized Steel
Front Panel Black Tempered Glass
Indicator Green/Yellow/Red
LCD Screen 4.3-inch LCD touch screen
Card Reader Contactless card reader
Startup Mode Password/RFID card/QR code
Emergency Stop YES
Communication Interaction
Wi-Fi Optional
Ethernet Optional
4G Default/Optional
Communication Protocol National Standard, OCPP1.6
Security Protection
Metering Independent metering, MID certified optional for European and American brands
RCD Yes
Protection Level IP54
Electrical Safety Protection Over-current protection, residual current protection, short circuit protection, grounding protection, surge protection, over/under-voltage protection, over-temperature protection
Environmental Indicators
Installation Wall-mounted/Floor-mounted (stand support)
Working Temperature -20°C to +50°C
Working Humidity 5% to 95%
Working Altitude <2000m
Appearance
Product Size 356*221*136mm (H*W*D)
Package Size 490*330*210mm (L*W*H)
Net Weight 3.4kg
Gross Weight 4.2kg
Outer Packaging Carton
