A safe and durable AC charging solution designed for both residential and commercial applications, featuring compact design and multiple installation options.

Key Features & Applications

"Sheet metal + tempered glass" chassis design with rainproof and anti-ultraviolet properties
Suitable for both outdoor and underground parking lot charging stations
Compact design with easy installation and IP54 protection rating

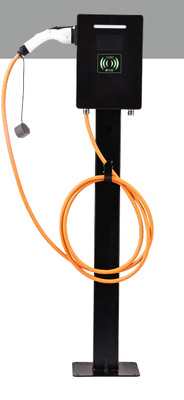

Wall-mounted or floor-mounted (with stand support) installation options
Cost-effective solution for home and commercial use
Optional 4.3-inch high-brightness, low-temperature resistant LCD touch screen
Standard 4.5-meter rolling charging gun (customizable length)
Supports scanning and touch operation for ease of use
Dual operation modes: card swiping (offline) and QR code scanning (online)

Intelligent Control System

Multiple networking options: Ethernet, 4G, Wi-Fi
Server background connection capability with multi-platform charging support
Payment options: WeChat payment and card payment
Online and offline operation capability
Remote upgrade functionality

Safety Protection Features

Type A leakage protection with extended type B leakage protection function
Comprehensive protection: over-current, over-voltage, emergency stop, and over-temperature protection
Independent metering with optional MID certification for European and American markets
RCD protection included
Multiple electrical safety protections: residual current, short circuit, grounding, surge, and over/under-voltage protection

other

Factory Direct Supply: Own production base with direct order processing to ensure supply efficiency
Flexible Production Capacity: Support for small batch trial orders (MOQ 1 unit)

Technical Specifications

Specification	CH-AC0070-BE-34
Input Type	1P+N+PE
Rated Voltage	220V AC
Rated Current	32A
Frequency	50/60Hz
Output Voltage	220V AC
Maximum Current	32A
Rated Power	7kW
Charging Connector	National standard charging gun, CCS1, CCS2
Cabinet Material	Galvanized Steel
Front Panel	Black Tempered Glass
Indicator	Green/Yellow/Red
LCD Screen	4.3-inch LCD touch screen
Card Reader	Contactless card reader
Startup Mode	Password/RFID card/QR code
Emergency Stop	YES
Wi-Fi	Optional
Ethernet	Optional
4G	Default/Optional
Communication Protocol	National Standard, OCPP1.6
Protection Level	IP54
Installation	Wall-mounted/Floor-mounted (stand support)
Working Temperature	-20°C to +50°C
Working Humidity	5% to 95%
Working Altitude	<2000m
Product Size	356221136MM (HWD)
Package Size	490330210MM (LWH)
Net Weight	3.4kg
Gross Weight	4.2kg
Outer Packaging	Carton
